SonoScape E2 Ultrasound System
The SonoScape ultrasound systems E2 and E3 build upon the E1, additionally featuring a color monitor and color Doppler function.

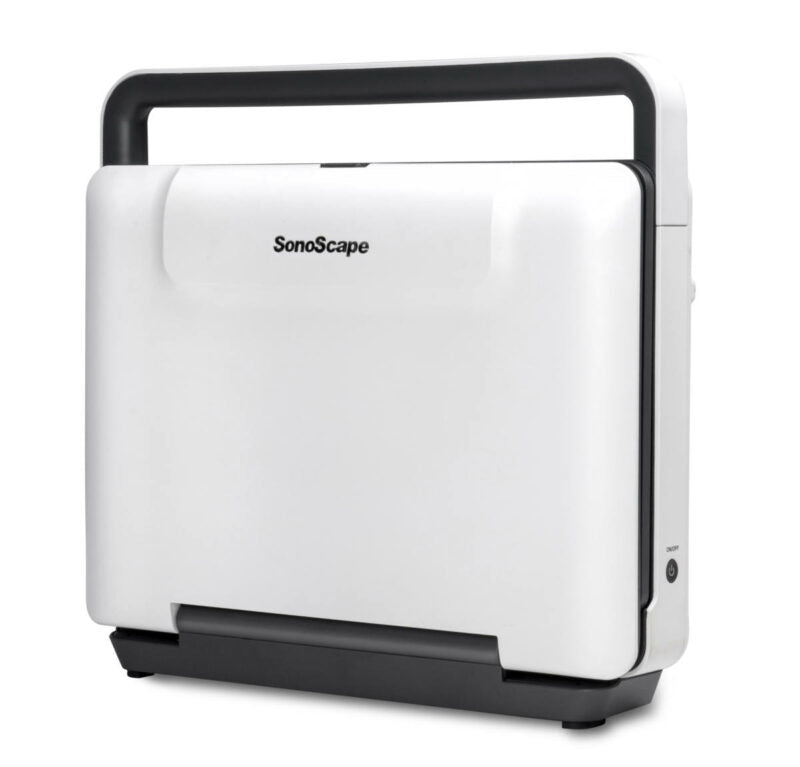

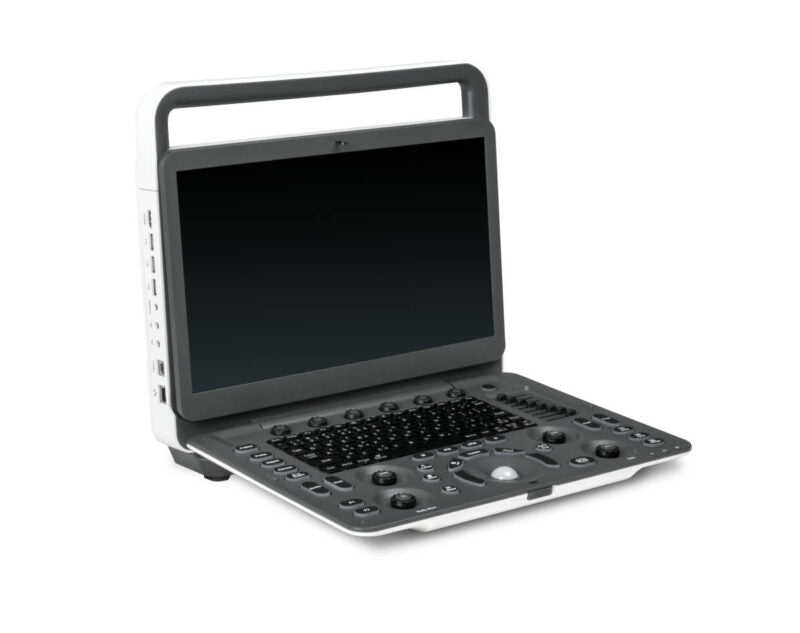

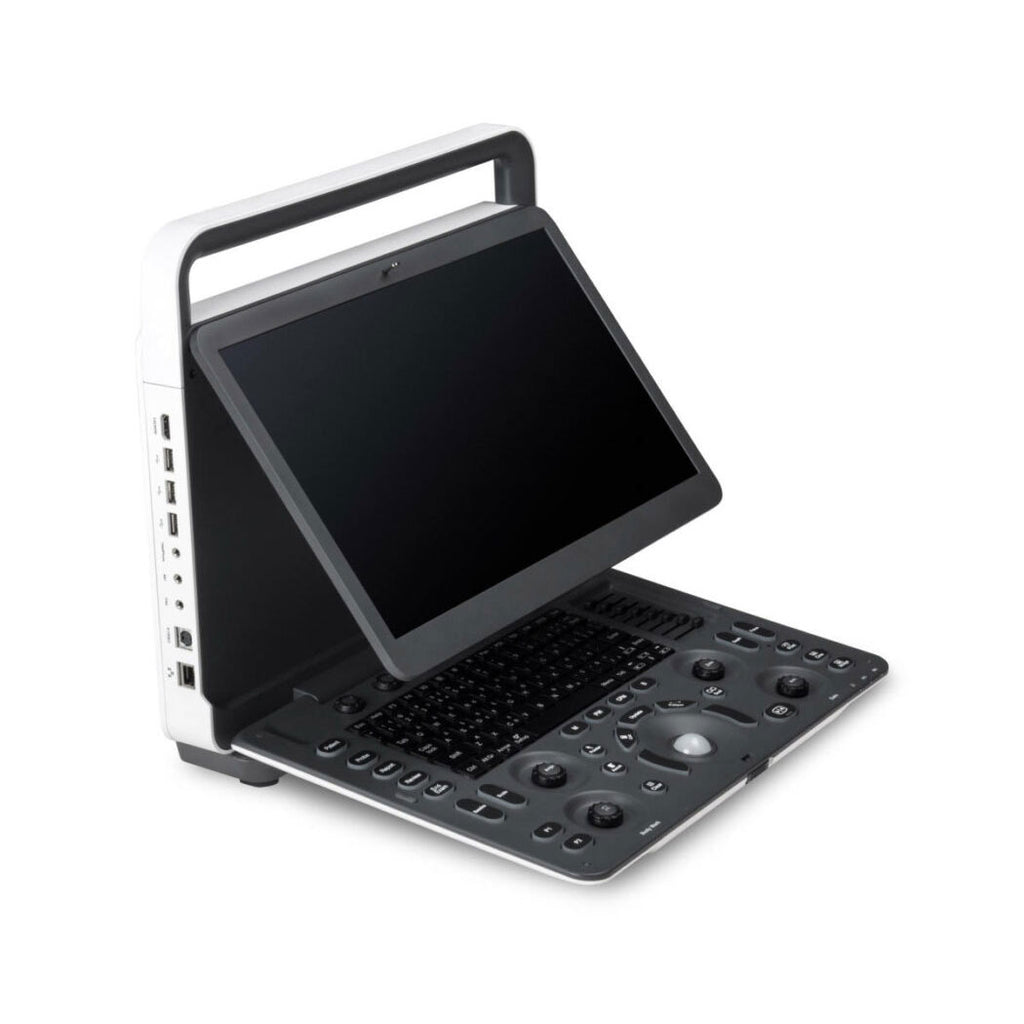

The tiltable 15.6-inch LCD display offers clear and sharp imaging. With a low weight of only approx. 8 kg including battery, the SonoScape E2/E3 is light and portable. It has two probe connectors (E3 can optionally be expanded to 3). A wide range of convex, linear, microconvex, and endocavity probes allows for use in various specialties such as general medicine, orthopedics, pediatrics, emergency medicine, or gynecology (E3 is also suitable for cardiology).
The SonoScape E2/E3 offers numerous image enhancement technologies such as THI (Tissue Harmonic Imaging), PHI (Pure Inversion Harmonic Imaging), Spatial Compound Imaging, µ-scan (2D speckle reduction technology), Trapezoid Imaging, Panorama Imaging, B-Mode, Color-Mode, PW-Mode, M-Mode, ensuring clear images for precise, safe, and fast diagnosis. Digital patient management and the integrated DICOM 3.0 interface (Store, Worklist) provide efficient data management and allow connection to existing IT infrastructures.
Additionally, the E2/E3 supports certain P-series probes such as the 3C-A convex probe.
Technical specifications:
- Frequency range: 1 - 17 MHz
- 15.6-inch LED screen with anti-flicker, tiltable monitor angle adjustment
- 2 probe connectors
- 500 GB hard drive
- Software: Color Doppler and PW Doppler, automatic brightness adjustment, automatic image optimization, Auto-IMT, DICOM 3.0, µ-Scan 2D, Speckle Reduction and Edge Enhancement, Auto: Auto optimization for B/ M/ PW/ CW, Store / C-Store / Worklist / MPPS / Print / SR / Q&R, TGC (Time Gain Compensation), Imaging modes: B/ 2B/ 4B/ M/ CFM/ PDI/ DirPDI/ PW
- Wide Scan - Enlarged image area, USB 2.0
- Long battery life of up to 90 minutes
We regularly offer special promotions on current ultrasound systems. Just ask.
In Germany, the MPBetreibV mandates training for medical devices. Training sessions are subject to a fee and are not included in the price.
Please contact us for more information and a quote by email or via our contact form.
Would you like to experience and test a device live? We regularly offer free trial appointments, training courses, and in-house exhibitions at all locations. Further information can be found under Dates and Registration.
