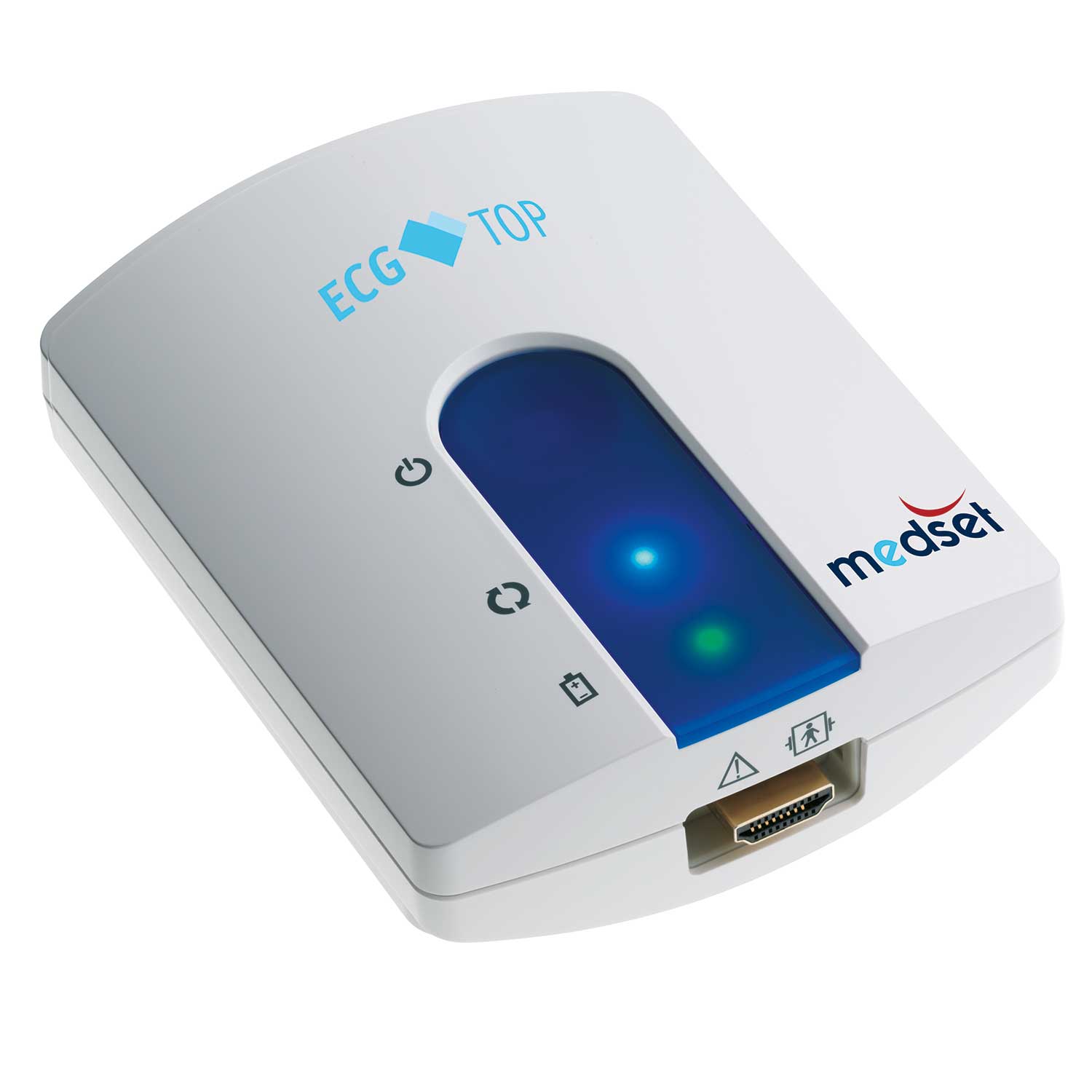

ECG amplifier, USB, ECG Top D
37000600
Preis auf Anfrage
Net price per sales unit plus statutory VAT.
Shipping calculated at checkout.
The ECG amplifier unit ECG Top D Set receives sensor signals via USB and transmits them to a PC (WIN) via a PC cable interface.
12-channel leads from resting or stress ECGs can be processed.
Key features:
- 24 bit resolution
- Sampling rate: 500 Hz, designed up to 32,000 Hz
- Signal bandwidth: 0.05 Hz to 150 Hz
- Pacemaker (spike) detection
- Accuracy according to EN 60601-2-25
- Galvanic isolation
- Defibrillation strength: 5 kV
- Dimensions 115 x 90 x 33 mm, weight approx. 200g
- Compatibility with existing suction systems can be established via HDMI-DSUB adapter cable, and after inserting a 10 kOhm defibrillation protection resistor into each patient lead
Scope of delivery: ECG amplifier ECG Top D, USB interface cable to PC, GBA
