Dispenser for 96-well plate, 12, curved (1 pc)
MD-AL-00176
Preis auf Anfrage
Net price per sales unit plus statutory VAT.
Shipping calculated at checkout.

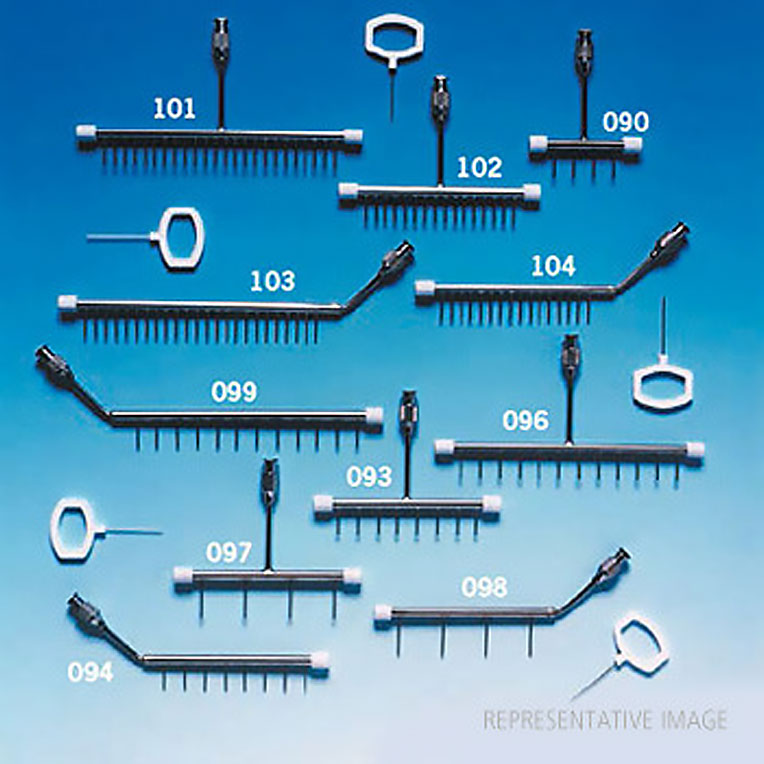

Drummond Dispenser Manifolds are designed for use with Drummond adjustable digital microdispensers.
The stainless steel manifolds allow the user to quickly and easily aspirate, wash, and dispense into 24-well to 384-well microplates. They are constructed of autoclavable stainless steel and PTFE. Each manifold is supplied complete with a cleaning wire for easy maintenance.
The straight 12-place manifold has a positive luer lock connection to attach it to the microdispenser. It is suitable for use with 96-well microtiter plates. The dispensing pin spacing is 9 mm (center to center) and the pin length is 11 mm. Each pin has an outside diameter of 0.7874 mm and an inside diameter of 0.4572 mm.
The straight 12-place manifold is supplied as a single pack.
The stainless steel manifolds allow the user to quickly and easily aspirate, wash, and dispense into 24-well to 384-well microplates. They are constructed of autoclavable stainless steel and PTFE. Each manifold is supplied complete with a cleaning wire for easy maintenance.
The straight 12-place manifold has a positive luer lock connection to attach it to the microdispenser. It is suitable for use with 96-well microtiter plates. The dispensing pin spacing is 9 mm (center to center) and the pin length is 11 mm. Each pin has an outside diameter of 0.7874 mm and an inside diameter of 0.4572 mm.
The straight 12-place manifold is supplied as a single pack.
