Philips Lumify L12-4 / C5-2 Ultrasound Bundle

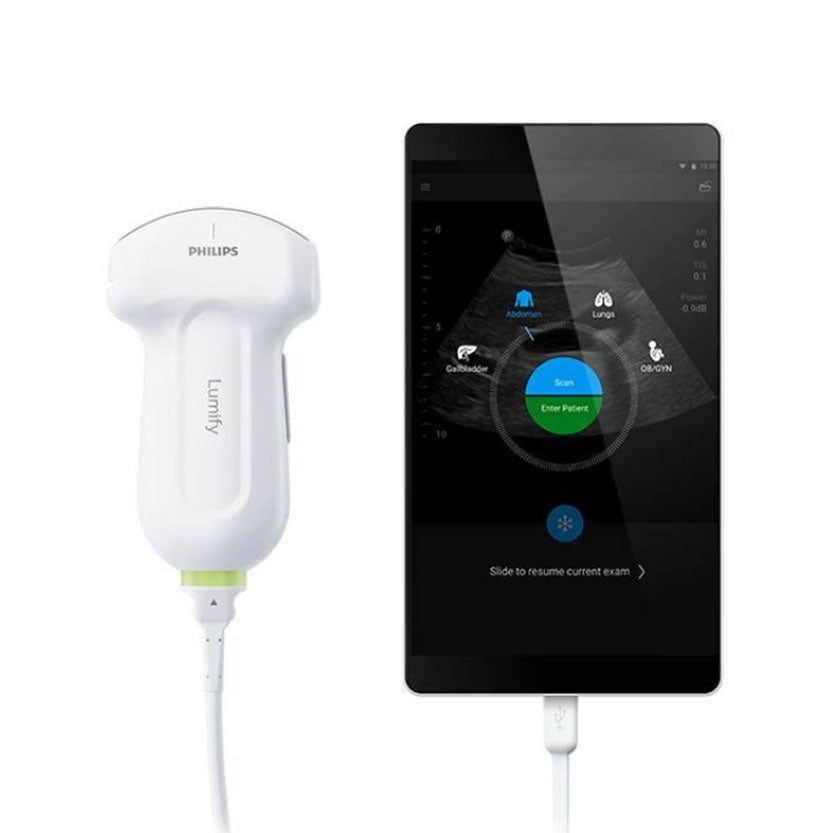

The Philips Lumify is a portable, highly mobile ultrasound system designed for interdisciplinary use. The system consists of a transducer with integrated signal processing, which is connected via a USB interface to a commercially available Android device (tablet or smartphone; also possible with iOS devices with an adapter). Depending on the clinical question, various transducer variants are available, including a broadband linear, a convex, and a sector transducer (Phaser), allowing for a wide range of diagnostic applications.
The Lumify enables real-time assessment of blood flow directly at the point-of-care. The integrated Pulsed-Wave Doppler expands 2D and color Doppler imaging with an additional diagnostic dimension. Detailed hemodynamic information is available to the user, enabling a differentiated analysis of blood flow – particularly for distinguishing between arterial and venous flow conditions and for quantifying hemodynamic parameters in the context of functional vascular diagnostics.
End device: Tablet or smartphone
System requirements: Min. 50 MB storage space, color display (min. 14 cm (5.5 in)), touch operating surface, integrated loudspeakers, IEC 60950-1 compliant, date/time configuration, full compliance with USB-On-The-Go standard, resolution min. 1280 x 800, Android operating system 5.0 or higher, min. NVIDIA Tegra 3, Intel Atom Z3580 CPU, WLAN or mobile network, access to ports 80 and 443

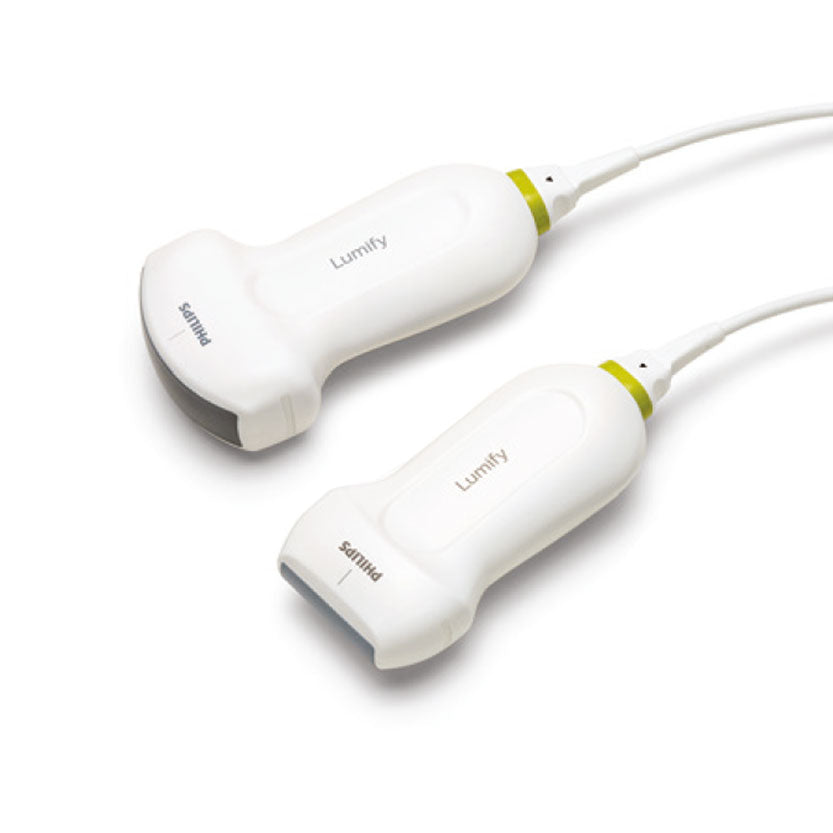

Bundle Philips Lumify Linear Transducer L12-4 and Convex Transducer C5-2
Convex Transducer C5-2
Bandwidth: 2 - 5 MHz
Field of View (FOV): 67.5°
Clinical applications: Abdomen, Lung, Gallbladder, Vessels, Obstetrics, Gynecology, Pediatrics, Urology
Linear Transducer L12-4
Bandwidth: 4 - 12 MHz
Field of View (FOV): 34.5 mm
Clinical applications: Abdomen, Lung, Peripheral Vascular, Small Organs, Carotid Artery
We regularly have special promotions on current ultrasound systems. Just ask.
In Germany, the MPBetreibV (Medical Devices Operator Ordinance) requires instructions for medical devices. Instructions are subject to a fee and are not included in the price.
Please contact us for further information and a quote via email or via our contact form.
Would you like to see and test a device live? We regularly offer free in-house exhibitions at all locations. Further information can be found under Dates and Registration.
