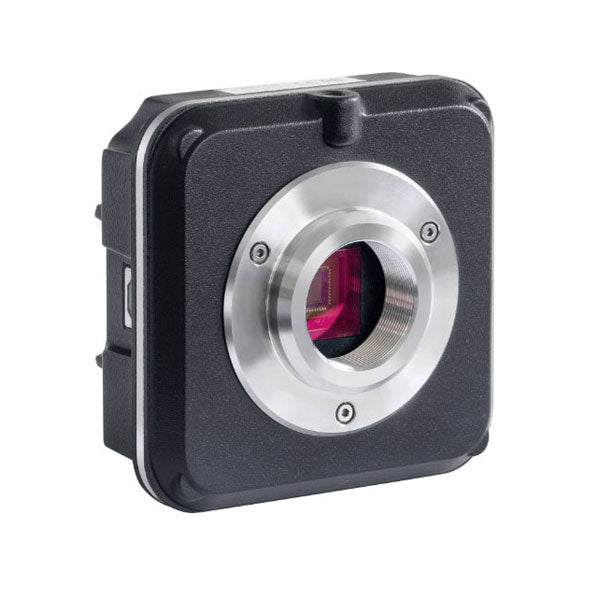

KERN Microscope Camera 5.1 MP, Color, USB 3.0
The ODC 832 microscope camera is universally applicable and can be connected to the microscope as well as to a laptop or PC via USB cable (USB 3.0). Thanks to the proven CMOS technology, in combination with USB 3.0, images are displayed quickly and clearly. These cameras are also suitable for more demanding applications, such as in darkfield, phase contrast and fluorescence applications. Optimal synchronization, a high frame rate and stable image performance in conjunction with our included Microscope VIS software will significantly facilitate your daily work. Power is supplied via the USB cable, so no additional power is required.
Technical data
- Camera sensor type: Aptina CMOS
- Camera color depth: Color
- Camera sensor size: 1/2.5"
- Camera resolution: 5.1 MP
- Interfaces: USB 3.0
- Camera frame rate: 14.2 - 101.2 fps
- Camera exposure method: Rolling Shutter
- Camera mounting types: C-Mount
- Supported operating systems: Win XP, Win Vista, Win 7, Win 8, Win 10, Linux
- Camera - Software used: external (OXM 902)
- Dimensions (W×D×H): 80×80×45 mm
Scope of delivery:
- multi-language KERN Software Microscope VIS Basic KERN OXM 901
- USB cable (length: 2000 mm)
- various eyepiece adapters
- objective micrometer for software calibration
Please order the appropriate C-mount adapter for your KERN microscope at the same time:
C-Mount camera adapter 0.57x
C-Mount camera adapter 1.0x
