Product variations
product description

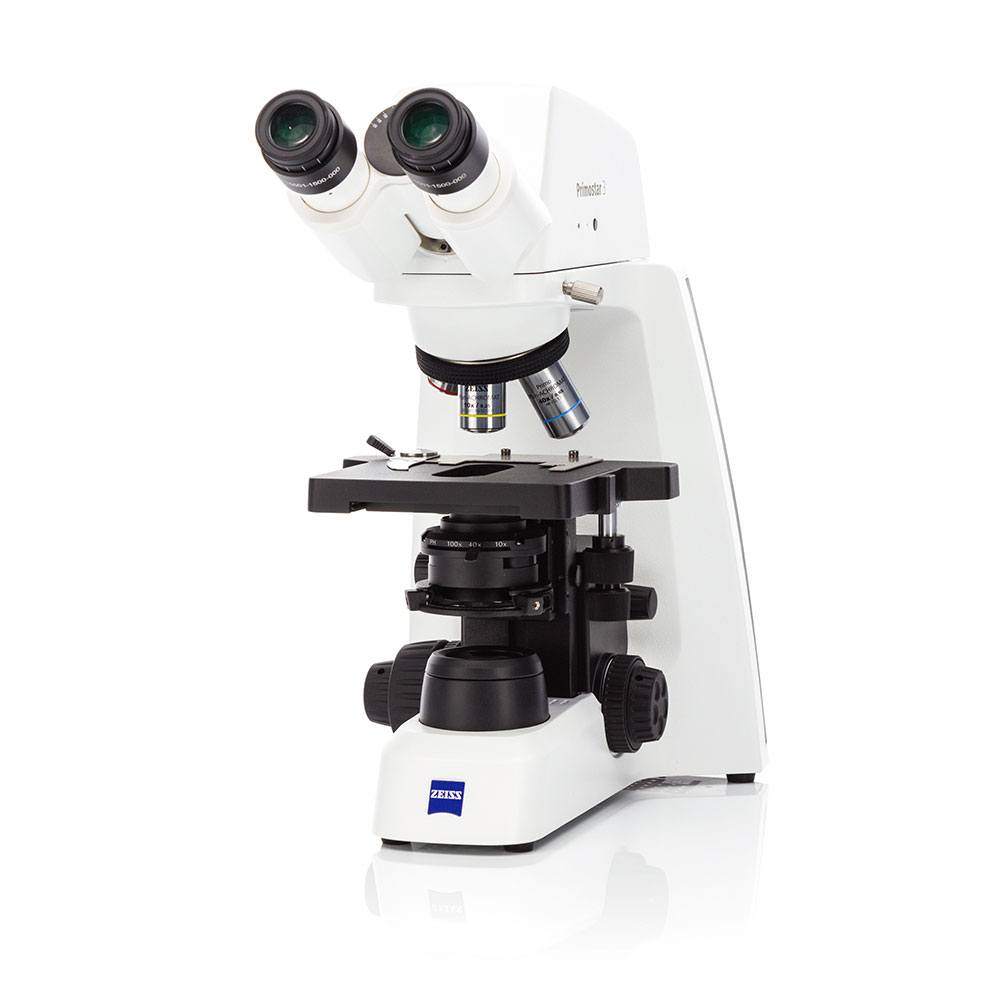

The Zeiss Primostar 3, newly introduced in 2021, is a robust microscope for permanent use in laboratories and training.
The combination with an integrated 8MP HD camera reduces the installation effort and the dependence on a correctly operated adapter.
The most important characteristics of this package:
-Lens iPlan-Acchromat 20x /0.45 Ph2 (e.g. for spermiogram) with 1.0mm free working distance Acchromat 100x /1.25 for Primostar 3 with 0.27mm free working distance, incl. 5ml immersion oil
The combination with an integrated 8MP HD camera reduces the installation effort and the dependence on a correctly operated adapter.
The most important characteristics of this package:
- Binocular transmitted light microscope for brightfield and Phase contrast 40x
- Built-in LED transmitted light illumination 3W white light, 5600 Kelvin
- Rearward-tilted 4-fold objective turret, for easy operation even during microscopy
- Cross table 75x40 Drive on the right and object holder for 1 object slide with spring lever on the left

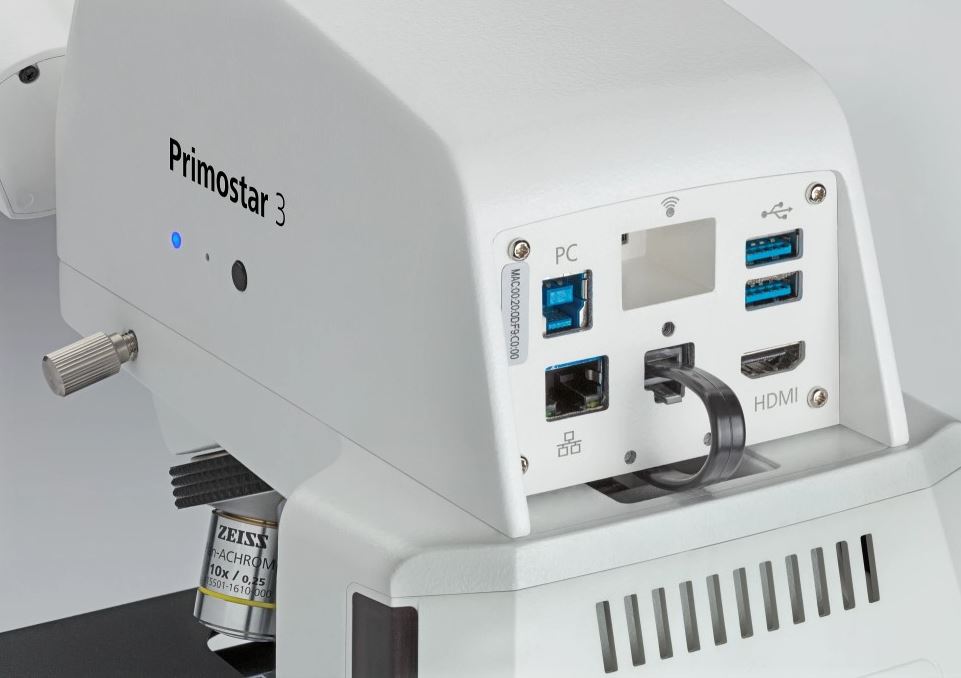

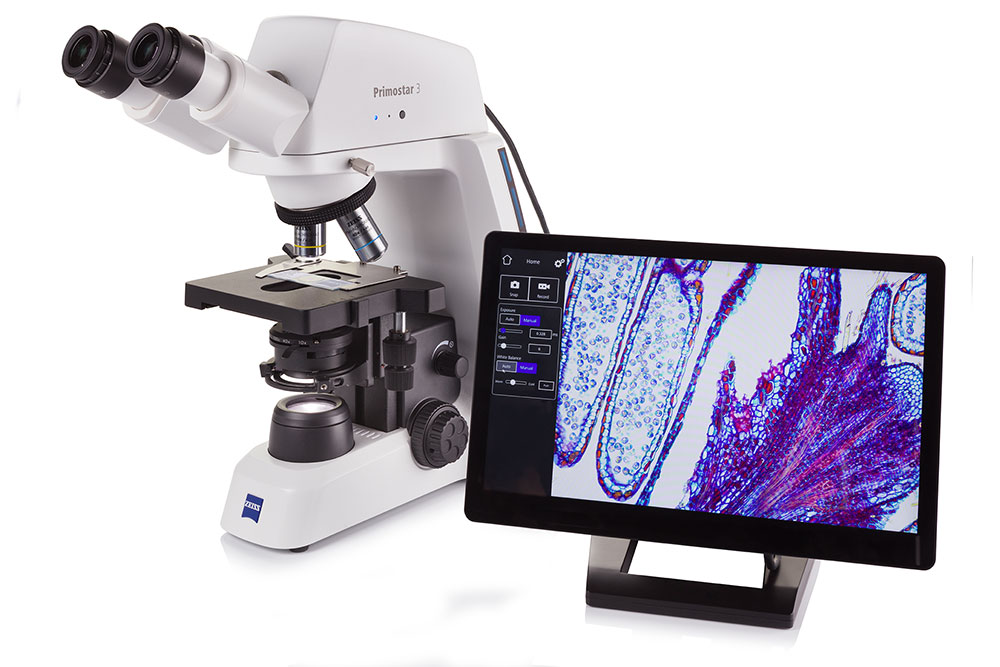

- Binocular camera tube 25° (50:50) with eyepieces 10x(20) glasses foc., with integrated 8 MP camera (3,840 x 2,160 pixels) for direct recording on a stick, via USB/LAN/WLAN to an iPhone/iPad/PC, or via HDMI to a monitor / beamer
- Abbe condenser 0.9 with phase shifter Ph2
- Objectives iPlan-Achromat 4x - 10x - 40x Ph2 (all optimized for use with cover glasses with a thickness of 0.17mm)
- Power cable el, protective cover, eyecups
- Easy to use
- Robust and durable
- Quality optics from ZEISS
- Excellent Value for money
- Modular lighting concept
- All functions can be learned quickly
- Suitable for training and for almost all routine work in the urological and gynecological laboratory including HAL, PH2 , Full Koehler 40x
- Zeiss imaging software included
-Lens iPlan-Acchromat 20x /0.45 Ph2 (e.g. for spermiogram) with 1.0mm free working distance Acchromat 100x /1.25 for Primostar 3 with 0.27mm free working distance, incl. 5ml immersion oil
Downloads
Reinigungshinweise.pdf (4.64 MB)
Reinigungshinweise.pdf
Urinanalysis.pdf (4.32 MB)
Urinanalysis.pdf
