product description

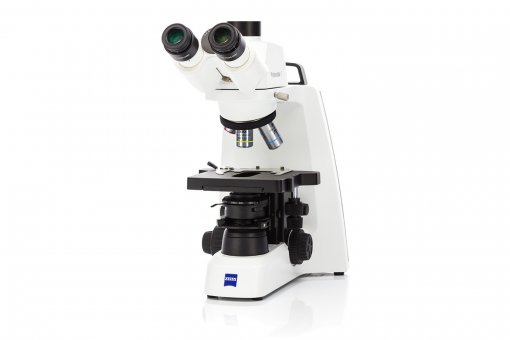

The Zeiss Primostar 3, newly introduced in 2020, is a robust microscope for permanent use in laboratory and education.
The most important characteristics of this package:
The most important characteristics of this package:
- Binocular transmitted light microscope for brightfield and phase contrast 40x
- Built-in LED transmitted light illumination 3W white light, 5600 Kelvin li>
- 4-fold objective turret tilted backwards, for easy operation even during microscopy
- XY stage 75x40 drive on the right and object holder for 1 object slide with spring lever on the left
- Binocular angle tube 25 ° with eyepieces 10x(20) glasses foc.
- Abbe condenser 0.9 with phase shifter Ph2
- Objectives iPlan-Achromat 4x - 10x - 40x Ph2 (all optimized for the Use with 0.17mm thick coverslips)
- Power cord, protective case, eyecups
- Easy to use
- Robust and durable li>
- Quality optics from ZEISS
- Excellent price/performance ratio
- Modular lighting concept
- All functions can be learned quickly
- Suitable for the Training and routine for almost everyone work in the urological and gynecological laboratory incl. HAL, PH2, Full Köhler 40x
- Objective iPlan-Acchromat 20x /0.45 Ph2 ( e.g. for spermiogram) with 1.0mm free working distance
- Objective iPlan-Acchromat 100x /1.25 for Primostar 3 with 0.27mm free working distance, incl. 5ml immersion oil
- Camera with camera tube can be retrofitted
Downloads
Literatur Urinmikroskopie (4.32 MB)
Beispiele aus einer Publikation
Zeiss_ZEN_Software.pdf (3.66 MB)
Zeiss_ZEN_Software.pdf
