Product variations
product description

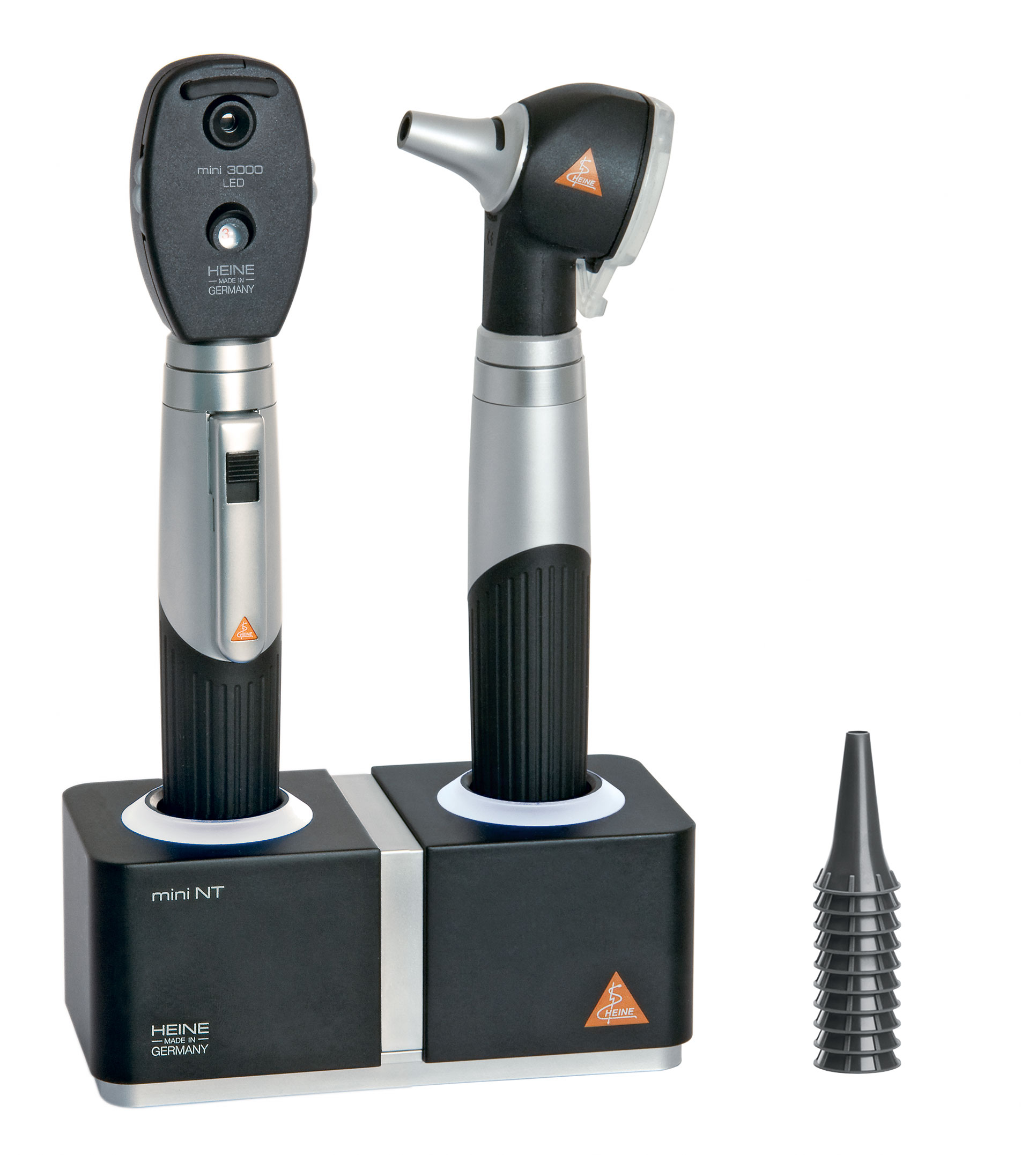

The mini 3000 set LED, ophthalmoscope + otoscope (F.O.) includes:
- mini 3000 LED ophthalmoscope
- mini 3000 LED F.O. Otoscope
- mini NT table charger
- 5 each AllSpec disposable tips 2.5 and 4 mm Ø
- Maintenance-free LED lighting
- Fixation star screen with gray filter to reduce the illuminance
- Outstanding optics and best color rendering with the smallest dimensions, well suited for traveling and rounds
- Can only be combined with the mini 3000 handle system
- Simple examination process, ophthalmoscopy possible without pupil dilation
- Clear, edge-sharp image with minimal reflections
- Five different apertures
- All important functions including fixation star and gray filter for light-sensitive patients
- Refraction compensation: 18 lenses in the range from -20 D to +20 D
- Retaining clip with integrated on/off switch
- Automatic switch-off as soon as it is clamped to the gown
- 20,000 on/off cycles guaranteed
- 2-piece handle and head piece
- Service-friendly, expandable
- Maintenance-free LED lighting
- Distal fiber optic illumination: Shadow-free illumination of the tympanum and auditory canal
- Viewing window with 3x magnification and optimized housing surface for razor-sharp images and minimized reflections / Viewing window integrated, sideways swivelling
- Pneumatic test for eardrum mobility using the blower connector and an optional blower connector
- Retaining clip with integrated on/off switch
- Automatically shuts off as soon as it is clipped to the gown
- 20,000 On/off cycles guaranteed
- 2-piece handle and headpiece
- Service-friendly, expandable
- < li>Maintenance-free, since no lamp replacement is necessary
- LED heat management for constant luminosity over the entire service life
- Absolutely the same moderate and bright illumination with excellent color rendering - color temperature: 4000 K, color rendering index > 95, for rendering red tones > 90 li>
- Fade-out function signals a pending battery change
- Operating time of up to 10 hours / fewer battery changes, longer battery life
- Compact charging technology: width: 112 mm, height: 50 mm, depth: 52 mm, weight 270 g
- Innovative, compact design
- Space-saving and stable storage of the instruments
- Two separate charging cases: Full functionality with one or two handles / Simultaneous charging of two mini handles possible
- Quick charging function: 4 hours charging time for NiMH charging battery 2.5 V
- Automatic charging process: Regardless of the charge level of the charging battery tery. Long service life of the charging batteries
- Overcharge protection: the charging process switches off automatically as soon as the charging battery is fully charged
- Charging indicator: the pulsating light of the holder indicates that the charging process is ongoing, a permanent light indicates that the charging process is complete < li>No memory effect of the charging battery: full power at all times, no decreasing capacity
Downloads
HEINE mini3000 Ophtalmoskop Broschuere (1.54 MB)
HEINE mini3000 Ophtalmoskop Broschuere
