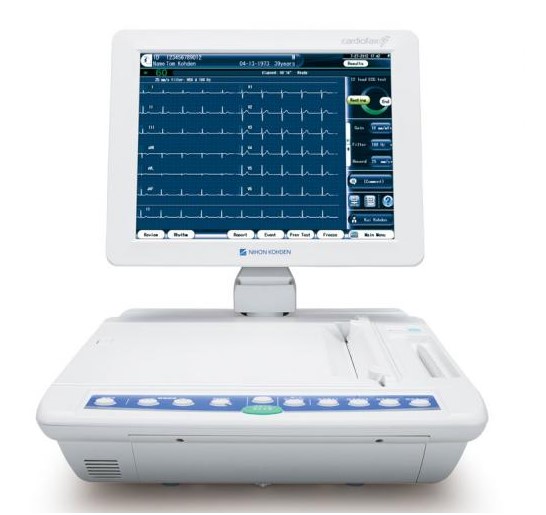

Cardiofax G, ECG-2550 6/12/15 lead ECG

The Cardiofax G ECG machine was designed for an efficient examination process, one of the most important needs of cardiologists and users.
Thanks to the new technology from Nihon Kohden, doctors can examine patients and analyze more comprehensive information: the syncECi18 technology offers based on a 12-lead ECG the data of an 18-lead ECG. It thus optimizes patient safety and provides valuable services in triage.
A flexible bracket provides a good view of the color display from different angles, and practical tools such as user-definable smart keys or a help function also improve and simplify the user's workflow for applying the ECG electrodes.

• Good visibility: The large 15 color touchscreen shows the ECG in the size of the printout. Up to 5 minutes of a 1-channel ECG curve can be displayed for evaluation. The patient data can also be seen clearly on the screen. The display can be flexibly adjusted to an optimal angle according to the needs of the user, thus ensuring a good view.
• Ease of Use: The touch screen displays many buttons on the right side for intuitive operation, and the on-screen instructions guide the user to apply the electrodes. The last examination can be started with just one touch.
• Efficient processes: The start/stop button on the patient inbox improves the user's workflow. User-defined keys can be used for frequently used functions and enables you to work efficiently. To prevent data loss, up to 10 minutes of ECG curves can be stored in a background memory.
• Smart design: The thermal comb recorder is a tabletop device and enables the curve printout to be created quickly. If necessary, the doctor can write comments directly on the printout and use the ECG recorder as a base.
• Electronic recording: The preview function allows checking the curves and analysis results before recording. In the paperless workflow, curves and analysis results can be transferred to a PC with the optional Polaris.one database for evaluation.
• Easy data transfer: Up to 800 resting ECG files can be stored in the memory. Approximately 48,000 resting ECG files can be stored on an SD card. The ECG data is transmitted to a PC via LAN or WLAN.
• ECAPS 12C analysis program: Enables a simultaneous 12-lead ECG derivation of 10 to 24 seconds and an analysis with around 200 findings and 5 categories of findings . ECAPS 12C can also recognize the typical curves of a Brugada electrocardiogram.

Note: The MPBetreibV applicable in Germany prescribes a device briefing and safety checks (STK) at 2-year intervals for medical devices before. These are not included in the purchase price. Of course we are happy to offer you instruction and STK. Please ask!

For more information and an offer, please contact us by e-mail or via our Contact form.
