boso ABI-System 100

boso ABI-system 100 – blood pressure monitor for early detection of peripheral arterial occlusive disease (PAVK)

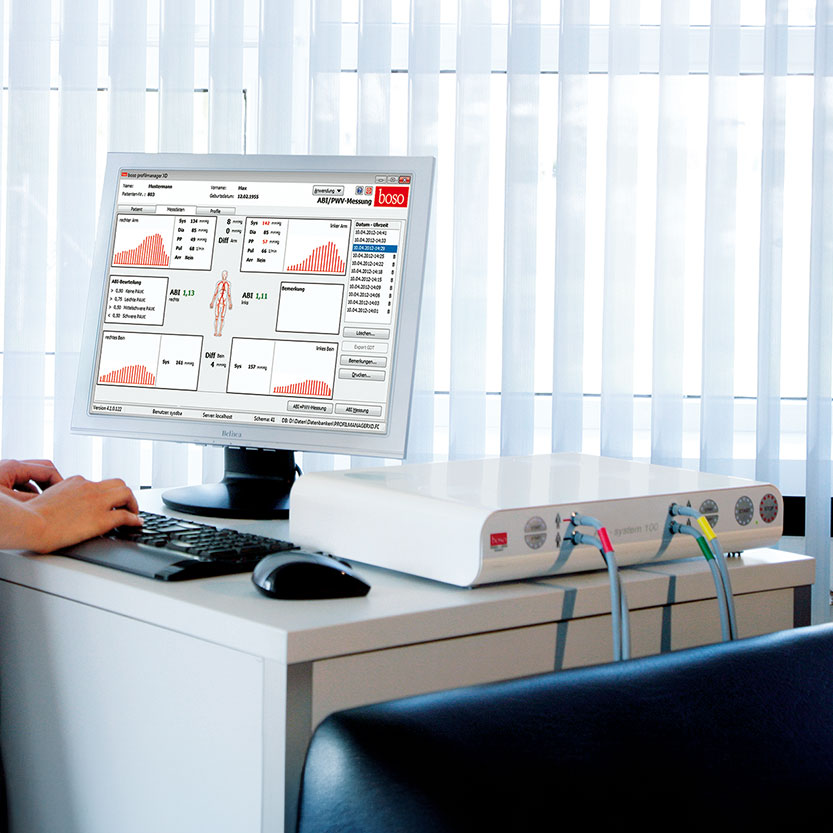

boso closes an important gap in cardiovascular diagnostics with the ABI measuring system . The ankle-brachial index (ABI) is the most powerful predictor of heart attack, stroke, and mortality. With the boso ABI system, this crucial value is determined much more easily, quickly and precisely, so that the examination can be carried out as a routine check on every patient. With the boso profil-manager XD software, you can make the diagnosis in a matter of seconds.

Optional: Determination of the pulse wave velocity (PWV) (Art. No. 10172) for the diagnosis of arterial vascular stiffness with progressive arteriosclerosis.

Product details

• For quick information on the risk of heart attack and stroke
• Precise determination of the ankle-brachial index (ABI) via the measurement of the systolic blood pressure values in the arms and legs
• Enables early detection of PAD and routine checks
• Time saving:
  • The blood pressure is measured simultaneously by oscillometric measurements on all four extremities.
  • The pure measurement time is one minute.
• Software and health:
  • Automatic evaluation
  • The determined values are automatically the assigned to selected patients. In addition to the calculated ABI, other important parameters of the cardiovascular system are also obtained.
• GDT interface: Enables the transfer of data to the practice EDP
• Without PWV

Technical details

• Measuring principle: oscillometric
• Measuring range systole: 60 to 240 mmHg
• Measuring range Diastole: 40 to 140 mmHg
• Cuff pressure: 0 to 300 mmHg
• Weight: 3.8 kg without power supply
• Dimensions (W x H x D): 460 x 83 x 290 mm
• MTK obligation: every 2 years (we are happy to offer this)

Included in delivery

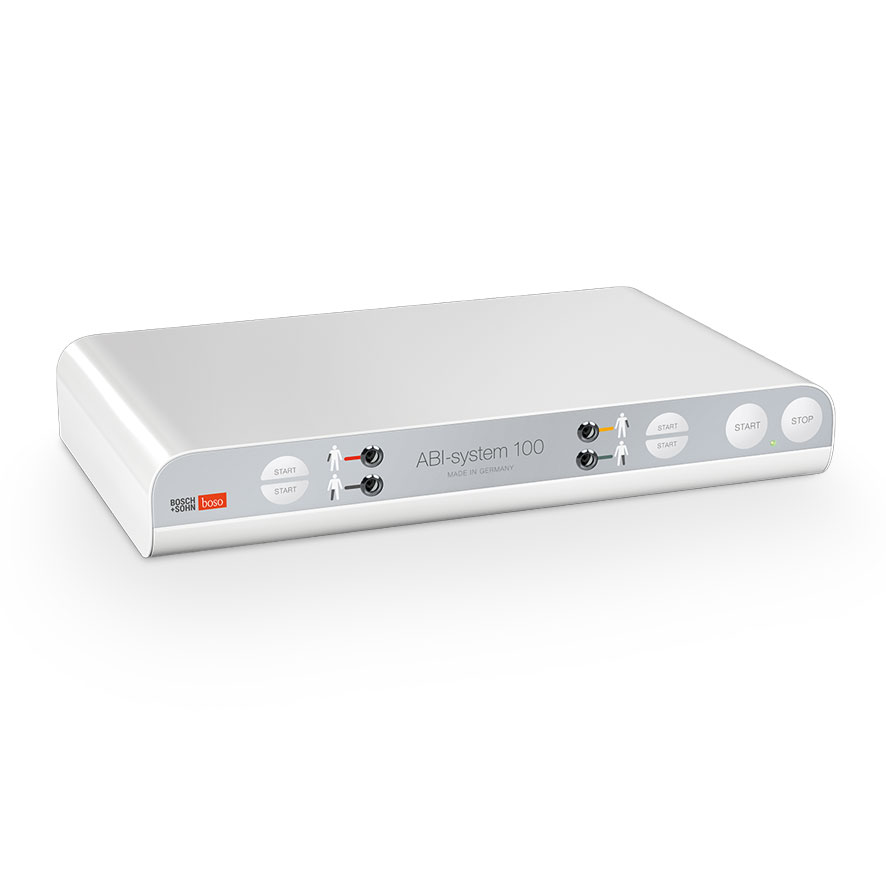

• 1 x boso ABI-system 100 - measuring device
• 2 x nylon leg cuffs incl. hose (circumference: 18-38 cm, type: CL04)
• 1 x CD with boso profile manager XD evaluation software
• 1 x USB connection cable
• 1 x power supply unit (item no. N92535)
• 1 x instructions for use boso ABI-system 100 + boso profil-manager XD

The device instruction required in Germany according to MPBetreib V § 10 paragraph 1 is not included in the purchase price.
Please contact us for further information and an offer by e-mail or via our contact form.
