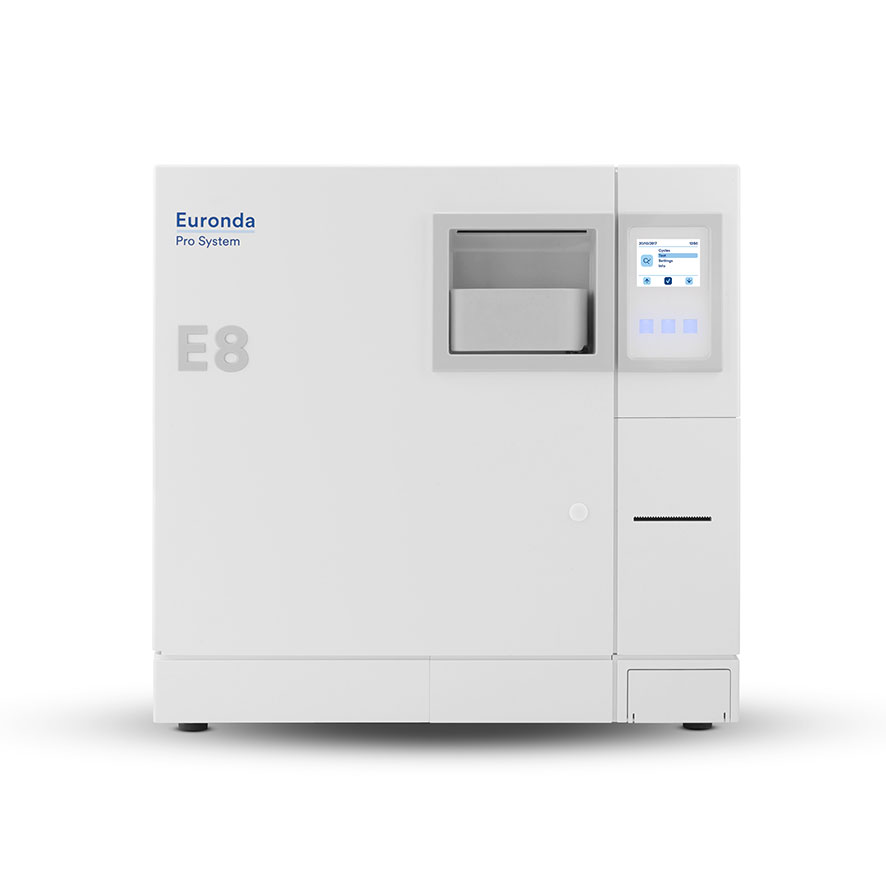

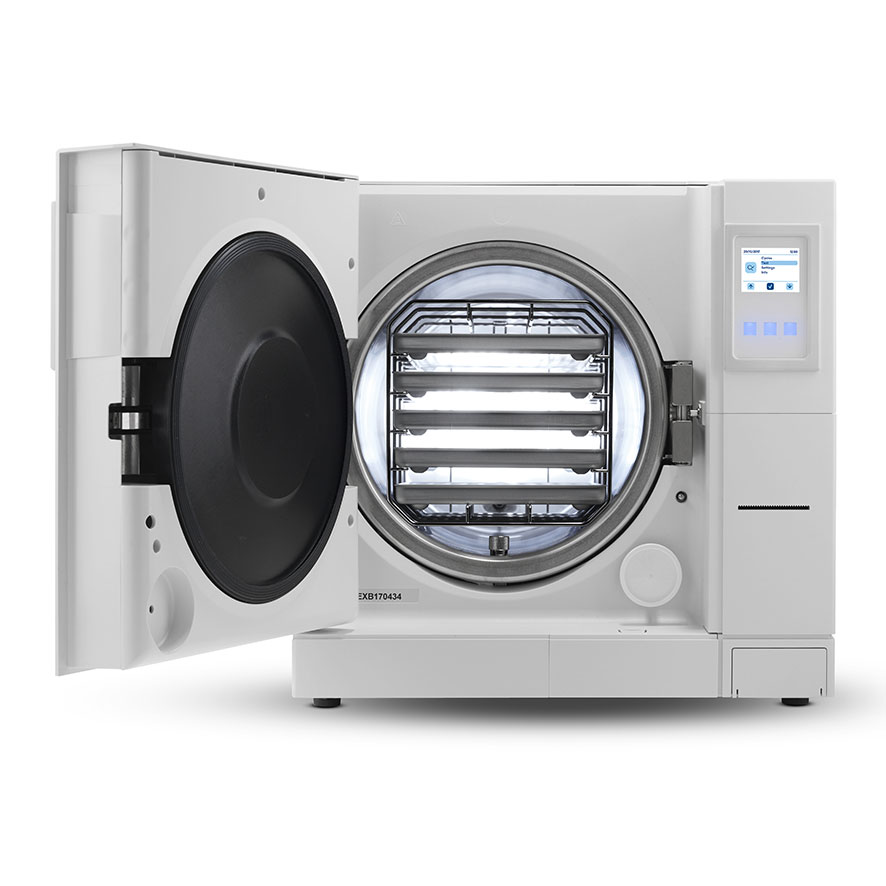

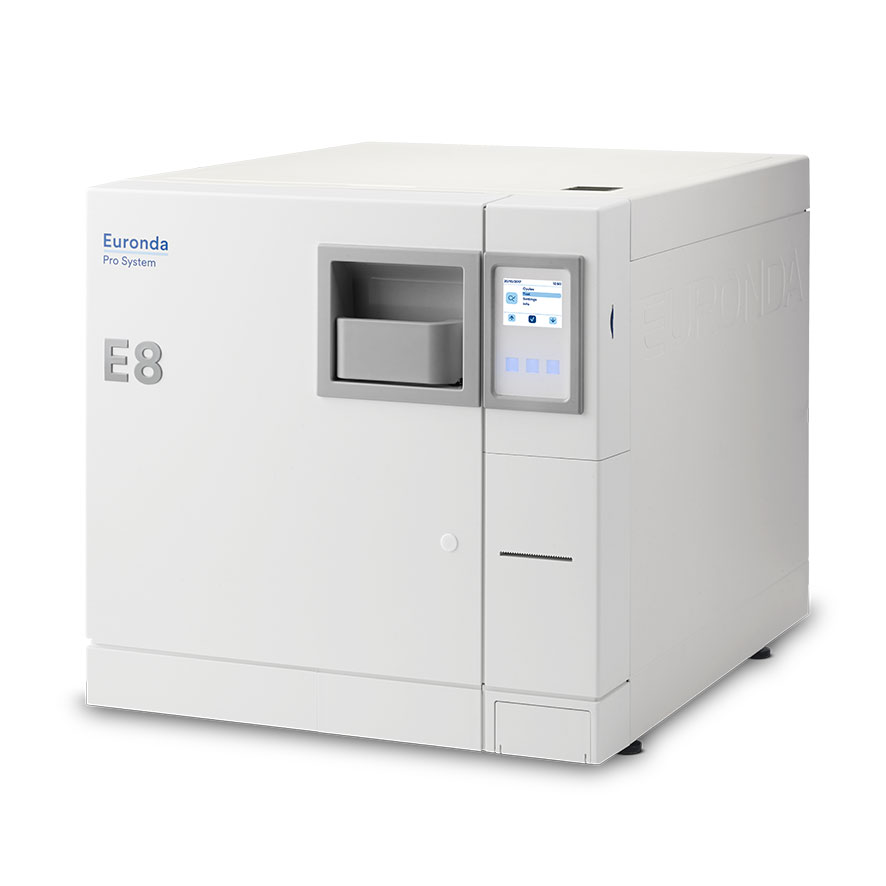

E8 autoclave 24L including starter package

Product.Nr.: 724003100

Price on request
add. 19 % VAT


aurosan-print    Ihr Kontakt zu uns

product description

Straightforward, powerful and affordable: The E8 is the practical autoclave with a focus on cost-effectiveness. The autoclave sterilizes easily, reliably and legally and enables a price-conscious entry into the processing of medical instruments in the practice. The control systems and functions guarantee permanently safe processes and sterilization results. Both construction and operation are easy to handle. In addition, consumption is very low and the cycle time is optimized for the load quantity.

Depending on your own needs, digital approval and documentation can take place directly on the device, with data transfer via memory card, via process documentation or sterile goods labeling in the printout.

  • Conductivity sensor continuously monitors water quality
  • Dirt Control System filters out impurities from water
  • Air-water separator separates residues from the air and protects the vacuum pump
  • Quickstart steam generator and optimized drying guarantee rapid sterilization with low consumption: 300 ml of water per cycle, power consumption 2.3 kW
  • Steam generation takes place outside the sterilization chamber. Benefits: Shorter cycle time, less water consumption and better steam quality
  • Safe B-class sterilization with five programs: 121° C, 134° C standard, 134° C Prion, 134° C quick, 134° C Prion quick / For packaged, unpackaged, solid material; Protective clothing, instruments
  • Conforms to standards / according to DIN EN 13060
  • Automatically adapts the sterilization parameters to the actual load
  • Clear pictograms and a clear menu help hygiene professionals design work processes effectively
  • E-Timer for a desired start time or for programming regular intervals for a test cycle
  • The fresh and waste water tanks are very easily accessible from above
  • Various printer solutions are available for a control printout of the sterilization results or the labeling of sterile goods packaging

Technical data:

  • External dimensions (W x H x L): 460 x 455 x 610 mm
  • Minimum depth of the footprint: 500 mm
  • Minimum footprint width: 460 mm
  • Empty weight (with basket and trays): 48 kg
  • Mains voltage: 230V 50/60 Hz
  • Supply voltage: 2300W 10A
  • Dimensions and volume of the chamber (Ø x L): 250 x 440 mm
  • Dimensions and volume of the usable space (W x H x L): 180 x 160 x 380 mm
  • Water volume consumed: 300 ml / cycle
  • Tank capacity: 5 / 3.5 liters



Included in the starter package:

  • Autoclave E8
  • Tray frame (186 x 22 x 379 mm / including five standard aluminum trays)
  • drainage hoses
  • sponge
  • Handle for removing the trays
  • Handle for adjusting the door
  • funnel

Optional extensions:

  • E-WIFI as an alternative to the built-in LAN connection
  • Print set 1: internal thermal printer for process documentation
  • Print set 2: internal label printer for identifying batches of sterile goods
  • Print set 3: external label printer for labeling large quantities

We also offer suitable water treatment systems for direct connection to the autoclave.

Test systems for internal control:

  • HELIX test
  • BOWIE & DICK test



Note: The MPBetreibV, which applies in Germany, requires device instruction and regular validation for certain medical devices. These are not included in the purchase price. Of course, we are happy to offer you instruction and initial validation as well as revalidation. Please ask!Please contact us for further information and a quote by email or using our contact form.
